The Insight System



Edify Studios clients have been asking for bigger spans, more glass and better views. We have partnered with W&W glass, to leverage their experience, from concept design to supply and through the installation. This allows us to deliver a tangible solution to the project team, with their engineered structural glass Insight System.

Introducing Insight™ — a revolutionary glass engineered system providing a high degree of transparency for walls, skylights and canopies. It provides a greater understanding of proximity and place, while exposing an entirely new view into the world, previously only imagined – until now.

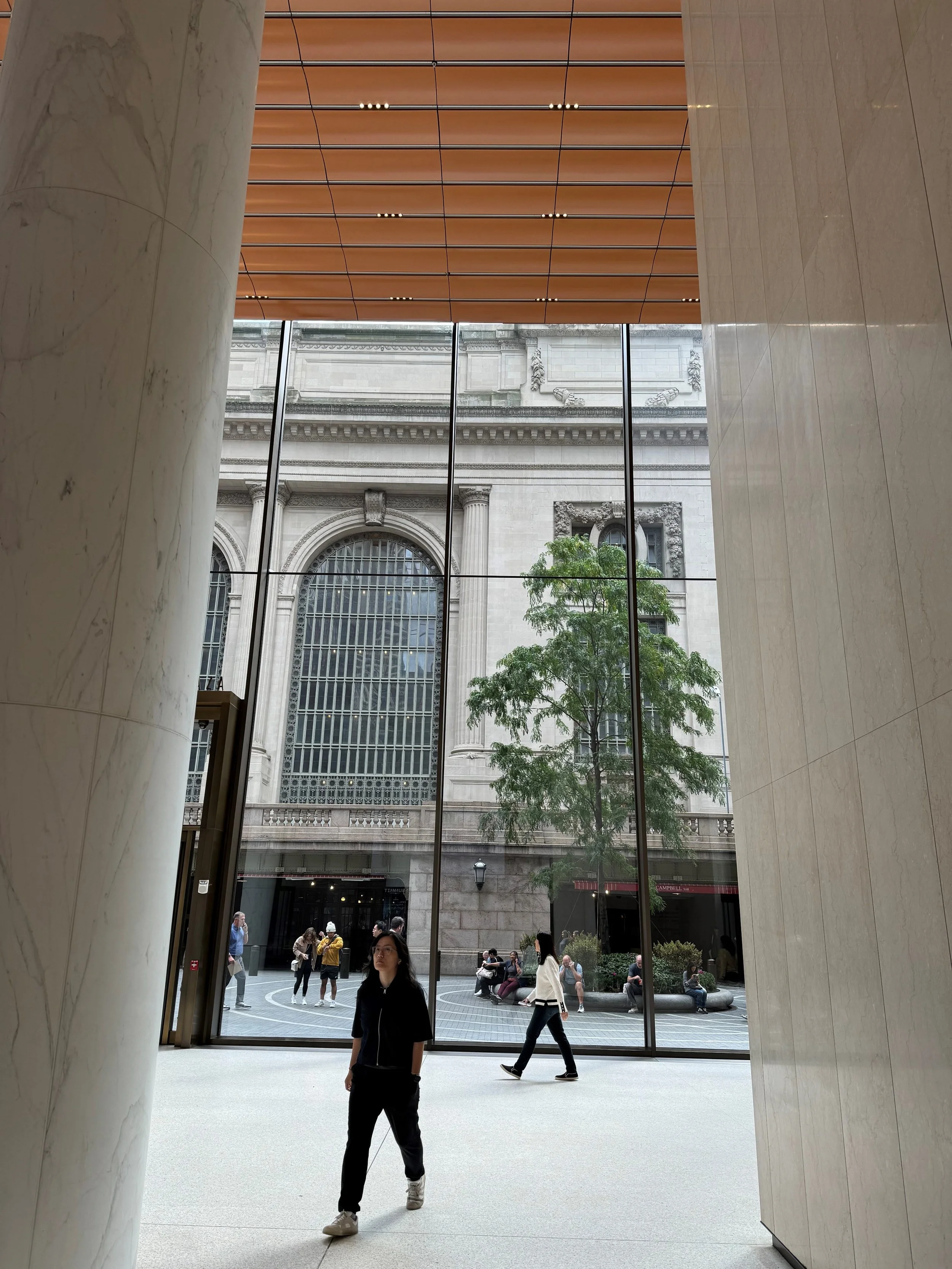

ONE VANDERBILT AVENUE | New York, New York

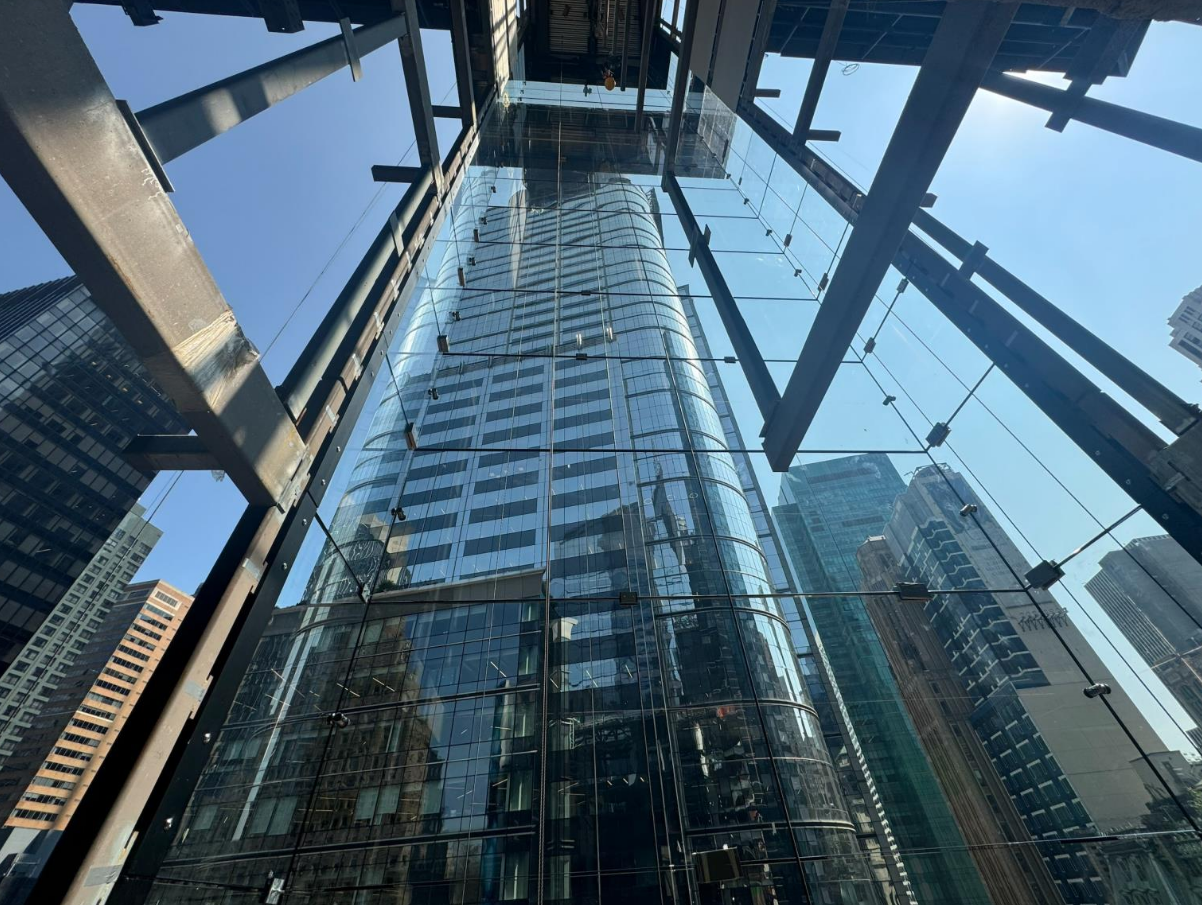

TWO MANHATTAN WEST | New York, New York

Highly Collaborative

— By Design

The W&W nsight systems offer more options to adapt to any opening, including free-span, unsupported glass panels without mullions, concealed dead load shelf supported, structurally-glazed systems and point-supported glazing to a wide range of support structures. Get unmatched versatility with fully customizable options, tailor-made for your project.


You have a vision, we make it real

From project concept to completion, our bottom-up approach brings your vision to life. With unlimited customization, specification accuracy, and validation through testing, we help set your work apart.

W&W offers proven technology to meet a variety of bigger, unsupported spans with a wide range of structural glazing systems to fulfill your latest architectural desires.

Glass Fins

Erie Insurance HQ | 58-foot tall full-height, INSIGHT multi-ply laminated glass fin wall system with concealed stainless steel dead load shelves supporting low-iron insulating glass units and an insulated laminated glass roof

Vertical Cable Wall

10 Hudson Yards | Custom Stainless Steel Patch Fittings, Galfan Link Locked Cables, Custom Stainless Bar Structure-less Corners

Glass on Steel Structure

Jacob K. Javits Convention Center Expansion | Insulating Glass Units w/ 905 Fittings Attached to Laminated Glass Fins

Truss Structures

The Rose Center | 902 Fittings, Custom Spider Castings, Stainless Steel Tension Cable Trusses, Optiwhite Low-Iron Monolithic Fins, Optiwhite Low-Iron SGP Interlayer Laminated Glass

Free Span Glass

Commonwealth Fusion HQ | Free-Span Low-Iron, Low-e Coated Insulating Laminated Glass Panels with a stainless steel patch clamp assembly at the 2nd floor slab for wind load only. Lower row of panels have a typical module size of 7’9″ wide by 15’4″ tall.

Cable Tension Walls

Turtle Creek Office | 905 Fittings, Longhorn Fittings,  Stainless Steel Tension Cables. Clear Low-E Coated Insulating Glass Units with HP 69/37 on the # 2 Surface

Tension Rod / Steel Beam

601 Massachusetts Ave | 905 Fittings, Stainless Steel Tension Rods, 87′ Wide Horizontal Steel Epoxy-Painted Trusses. Optiwhite Low-Iron Monolithic Glass

All Glass Vestibules

Exelon HQ | 905 Fittings, Optiwhite Low-Iron SGP Laminated Glass with K Low-e on Surface #4. Optiwhite Low-Iron SGP Laminated Glass. Fins are Optiwhite Low-Iron Monolithic Glass Fins

Specialty Glass Solutions

Vertical Walls and Roof Glass

One Times Square | 23-Stories of 19’7” Wide All Glass Unitized “U-Shaped Panels” with 4’4” Glass Returns Cantilevered Off Building

Elmhurst Community Library | 905 Fittings. Cantilevered Optiwhite Low-Iron SGP Laminated Glass Fins. Optiwhite Low-Iron Insulating Glass Units with HP 69/37 Low-e on Surface #2,  Optiwhite Low-Iron Silk-Screened Insulating Glass Units with HP 69/37 Low-e on Surface #2 and Custom Vertical White Line Silk-screen Frit Patterns on Surface #3


The Collaborative Process

You Share Ideas

Get involved early. We encourage architects, designers and contractors to come to the table as active participants with creativity, sketches and functional approaches to design — so we can resolve issues during the design phase instead of in the field.

We Share Approaches

You know what you want, and we know how to get it done. Our design team reviews your plans and offers different ways of bringing your project to life. From budget and timeline to materials and compliance, we work together to create a uniquely collaborative solution that fulfills your vision.

Collaborate and Refine

Under our model, we all work towards a common goal: to achieve the best design. When done properly, we are one unified team moving in cohesion, ultimately generating added value for your clients and stakeholders through the work we create together.


Perfect for Commercial Building Refresh Projects

From new windows to new storefronts and updated lobbies, we can make sure your building puts its best foot forward at the level people see the most – the street. Need a tall or high-span, multi-level facade with a lot of transparency? Maybe an all glass canopy for weather protection? We have the expertise in lobby repositioning – both in metro NYC and beyond – to help bring your existing building to life. Whether you need to maintain pedestrian access in and out of the lobby through a phased installation of the new glazing systems or have an unoccupied space, our experience in renovations can help you deal with underlying building conditions to provide creative engineered solutions to challenges when they arise.

800 5th Avenue | Seattle, Washington

Henry M. Jackson Federal Building | Seattle, Washington


Criteria for Optimal Glass Performance.

Fabricated glass products can be chosen based on any number of criteria: to meet a certain color profile, to match performance elsewhere in the building, or for mechanical system performance requirements. Acoustic qualities can also factor in, as well as special requirements like bomb-blast, burglary/forced entry resistance or hurricane impact. We tailor solutions that meet your individual project requirements from best-in-class, global manufacturers.

5TH AND COLUMBIA | Seattle, Washington


Tested to perform

Insight systems have undergone extensive testing to ensure safety and effectiveness under project loading conditions. W&W partners with best-in-class glass and metal fabricators to assure the highest level of quality, helping designers and owners achieve their ultimate vision.



Innovations in Invisibility

“Architects have been asking us for years what we can do to go beyond traditional structural glass systems. W&W has heard their calls and responded with Insight systems that achieve their desire for increased transparency, bigger spans and higher energy performance. We continue to drive the market forward with reliable, buildable solutions utilizing our vast in-house engineering and installation expertise.”

Jeff Haber, Managing Partner

GIGAFACTORY | Austin, Texas | 32’ Tall Facade with Oversized, Jumbo 32’ Tall by 9’2” Wide 7-Ply SentryGlas® IGU Laminated Glass


From Design to Installation, We Change the Way You See the World

Reach out today to learn more about our limitless capabilities. From modern glass solutions installed with our extensive in-house installation expertise to guidance for our glazing partners in the field, we engineer and supply one-of-a-kind system designs.
